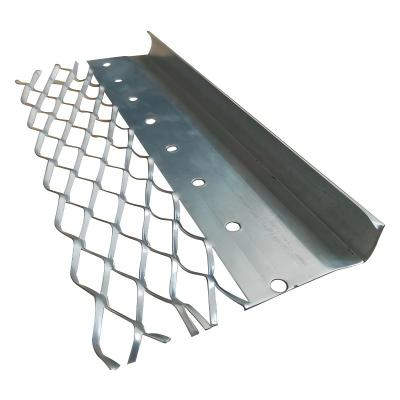

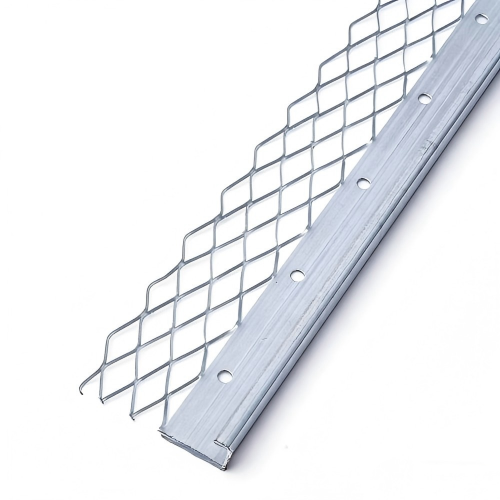

Expanded flange casing bead
Share to：

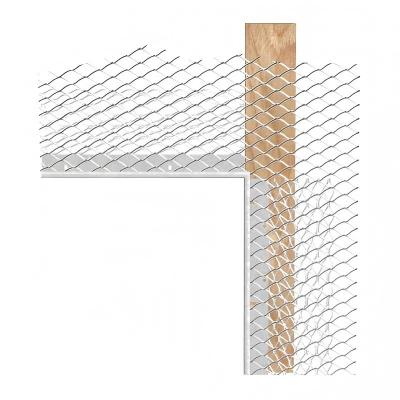

Expanded Flange Casing Bead is a stucco and plaster termination trim designed to create clean, straight edges at doors, windows, soffits, and other dissimilar materials. The expanded metal flanges provide excellent keying and embedment into the base coat, helping lock the bead firmly to the wall system while maintaining a consistent plaster thickness. By defining a crisp termination line and reinforcing vulnerable edges, Expanded Flange Casing Bead enhances crack resistance, improves moisture management at transitions, and delivers a neat, professional finish for both residential and commercial exterior or interior applications.
raw materials：
Galvanized Steel
Sample:
Free
Warranty：
Two years
Service:
End-to-end one-stop service.
| Product Code | Ground | Length | Pcs./Ctn. | Ft./Ctn. | Wt./Ctn. | Ctn./Skid |
|---|---|---|---|---|---|---|
| XXCB | 3/8" | 10' | 30 | 300' | 46 lbs. | 20 |
| 1/2" | 10' | 30 | 300' | 46 lbs. | 20 | |
| 5/8" | 10' | 30 | 300' | 49 lbs. | 20 | |
| 3/4" | 10' | 30 | 300' | 49 lbs. | 20 | |
| 7/8" | 10' | 30 | 300' | 54 lbs. | 20 | |
| 1" | 10' | 30 | 300' | 56 lbs. | 20 | |
| 1-1/4" | 10' | 30 | 300' | 60 lbs. | 20 |
Technical Parameters
- Material: Galvanized steel; optional zinc‑aluminum or stainless steel
- Profile: Straight casing bead with expanded metal flanges
- Perforation: Expanded mesh flanges for superior key and bonding
- Finish: Zinc‑coated for corrosion resistance in stucco applications
- Packaging: Bundled, film‑wrapped, and palletized for transport
Product Application

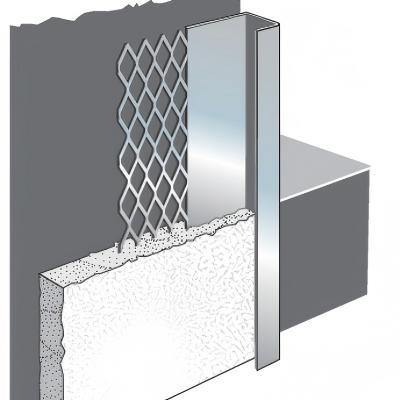

Expanded Flange Casing Bead is used to terminate stucco and cement plaster at doors, windows, soffits, and other stop points. It provides a clean, straight edge while the expanded flanges anchor into the plaster and lath, creating a durable transition between stucco and adjacent materials such as brick, siding, or trim. Suitable for residential and commercial façades, it is commonly installed around openings, at base of walls, and along horizontal terminations.
Product Advantages
- Creates a neat, defined termination line for stucco and plaster
- Expanded flanges offer strong bond and help reduce edge cracking
- Galvanized steel construction improves durability and rust resistance
- Consistent grounds maintain accurate plaster thickness across the wall
- Easily cut and fastened to align with windows, doors, and trims
- Works with most metal lath, control joints, and corner beads
